Motor Coupling Test System For New Energy Vehicles

Name: Motor Coupling Test System For New Energy Vehicles
Brand: SeeLong
Price: 1 USD

Brand Name : SeeLong

Model Number : SSCG160-3000/10000

Certification : CMC

Place of Origin : China Luoyang

MOQ : 1

Price : Confidential

Payment Terms : T/T

Supply Ability : 10 sets per month

Delivery Time : 10-12weeks

Packaging Details : 1500mmF*1000mm*2000mm wooden box

Power : 160KW

Torque Range : 509Nm

Speed Range : 3000~10000rpm

Torque accuracy : 0.02%FS

Speed accuracy : 0.1r/min

Rated voltage : 380V±10% 50Hz

Service temperature : -20to45℃

Use altitude : <2000m

Contact Now

Motor coupling test system for new energy vehicles

Introduction:

In the automotive industry, new energy vehicle motors have more and more application requirements for passenger cars, commercial vehicles, logistics vehicles, and heavy trucks. Strict testing and analysis of performance is particularly important.

The basic scope and accuracy of the test of the motor of the passenger car on the trailer:

●Recommended power range: 0~400KW power level, support other customization of other power, speed and torque levels;

●Recommended speed measurement range: 0~10000 r/min;

●Recommended torque measurement range: 0~500N.m;

●Measurement accuracy of basic electric power: ±0.02%;

●Speed measurement accuracy: ±1r/min;

●Torque measurement accuracy: ±0.02%F.S;

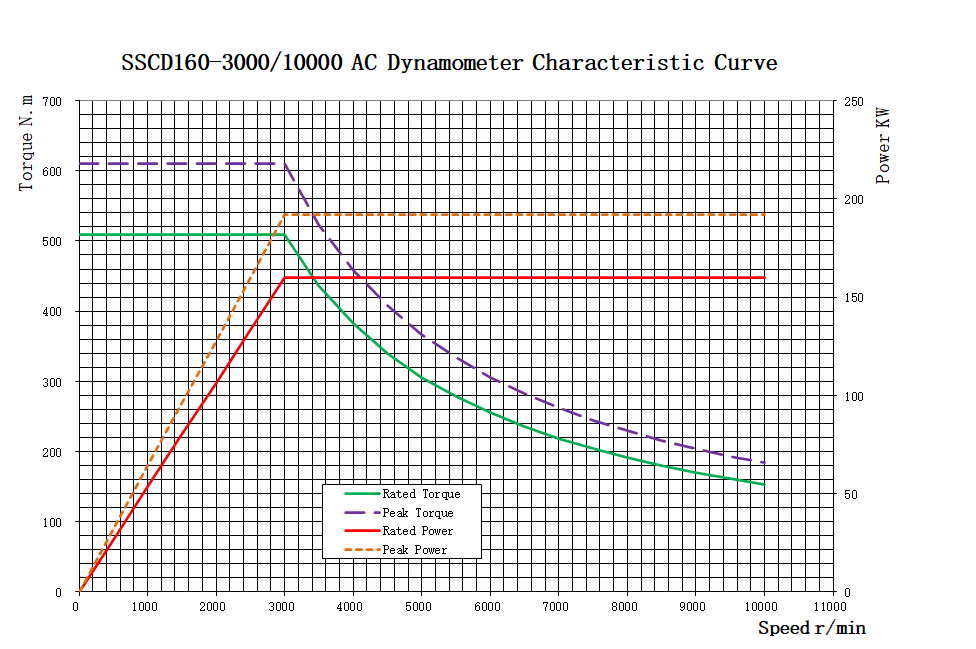

Characteristic curve

Pilot projects:

Locked rotor test, load test, no-load test, temperature rise test, load characteristic test, endurance test, electric working condition, power generation condition, etc.
